🚧 Boolean Extrude

Boolean Extrude Icon

Cuts and extrudes where cutter meshes intersect.

Extrusion Operation

  • Emboss

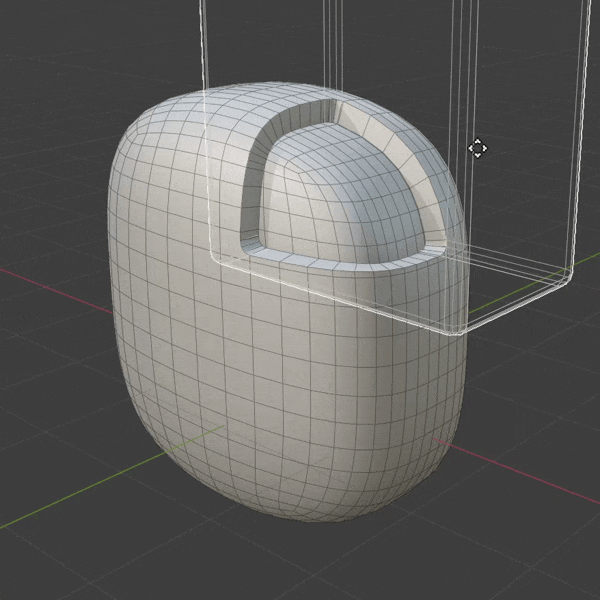

    emboss Slice mesh and extrude intersection faces in or out.

  • Panel

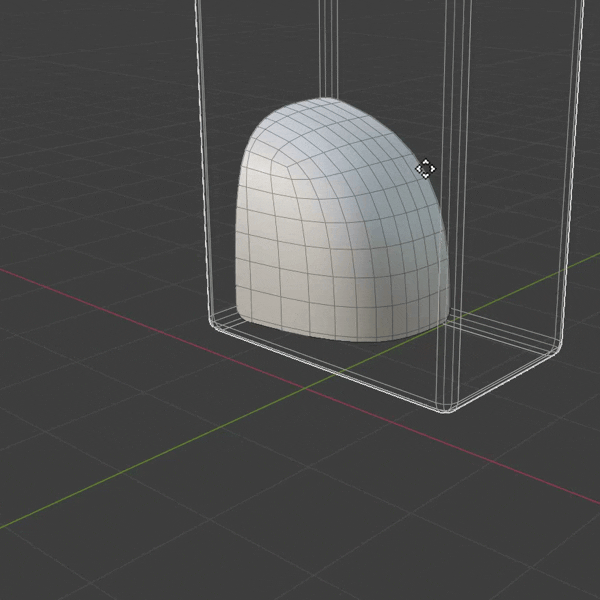

    panel Perform an "Intersect" Boolean and extrude the result into a solid panel.

Equal and Opposite

These two operations are essentially the inverse of each other. Duplicating the object and using opposite operations with different outsets can create interesting effects.

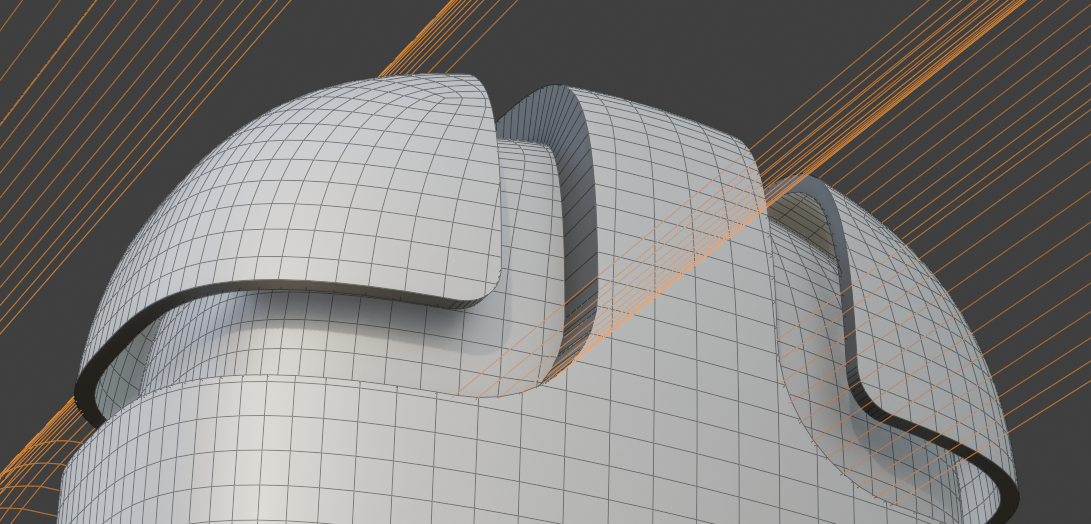

Boolean Extrude Combined

Options

Cutters

This section specifies which cutters to use.

  • Objects/Collection: Choose individual mesh objects or a collection containing mesh objects.
  • Object Count: How many cutter mesh objects to use (when in Objects mode).
  • Cutter Outset: Expands the cutter mesh with options for even thickness.

Extrude

This section details the extrude operation

Inset (When Extrusion Mode = Extrude Faces)

Inset the front of the extrude operation.

Normals

Weld
