Modify UVs

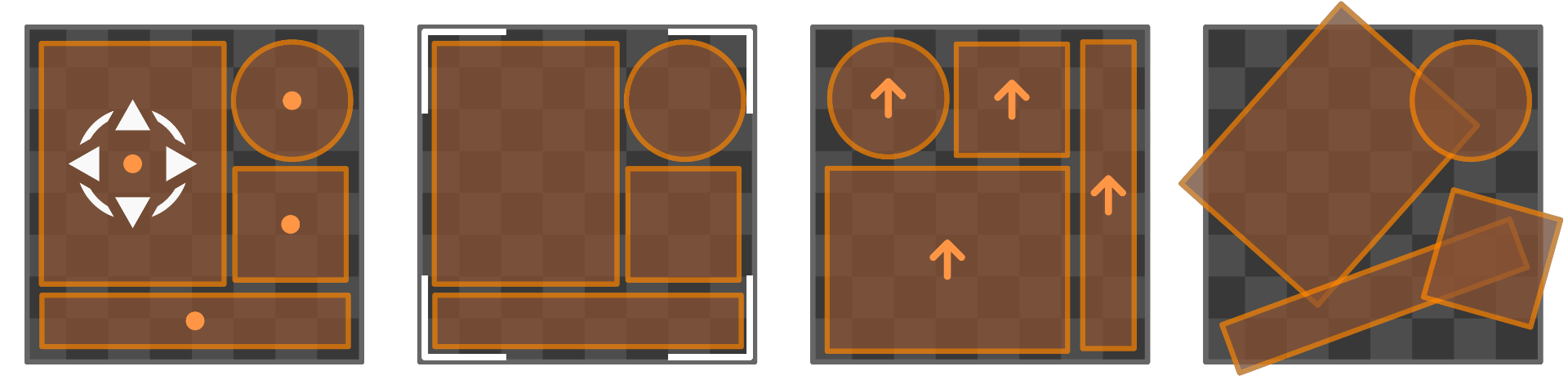

Transform Tools

Most UV modification tools apply some form of transformation to existing UVs. All transform tools are available as modifiers, nodes and mesh tools.

transform tools

Common Settings

All transform tools share common settings to specify which UVs to modify.

  • UV Map. Which UV map to modify. This is a string parameter currently, be sure the name matches the map you wish to modify.

Seams

  • Detect Existing. Use existing seams in the specified UV map. This will only detect seams if there is a gap in UV space, it cannot detect unwelded UVs or the seam attribute.
  • Attribute. UV seam attribute. Each uvFactory node that creates nodes also creates this attribute. As of Blender 4.4 it also includes manually marked seams.

Selection

  • Selection. Which faces to modify UVs for. Defaults to "on", applying to every face.
  • Material. Limit UV modification to a specific material.
  • Invert Selection. Inverts the selection to modify UVs on every face that isn't selected using the above options.

Transform

transform

Apply basic offset, rotation and scale to UVs.

  • Per Island. Apply transforms per UV island when turned on. Otherwise transforms will be in global UV space.
  • Offset U / Offset V. Offset UVs in either direction uniformly.
  • Uniform Scale. Apply uniform scale to UVs. This will use the Scale U value.
  • Scale U / Scale V. Apply scale to UVs. When Uniform Scale is on, only the U value will be used.

Pack Islands

transform

Packs UV islands into 0-1 UV space. This uses Blender's native geometry node packing algorithm. This is less effective than the Pack Islands tool in the UV Editor. For use when procedural packing is required.

  • Margin. The distance to leave between UV islands.
  • Rotate. Allow Rotating islands for best fit.

Align Islands

transform

Aligns UV islands to a vector in 3D space. UVs will be oriented to the "slope" of islands relative to the input vector.

  • Reference Object. Specify an object to align UVs too.
  • Align Vector. Vector to align UVs to. This can be a constant or an attribute/field. When inputting an attribute/field, it will be averaged across each island before aligning.

Randomize Islands

transform

Randomizes offset, rotation and scale of UV islands.

  • Seed. The seed used for randomization.
  • Snapped Rotation. Will rotate UV Islands randomly by multiples of the Snap Increment. This can be useful for materials such as wood or tiles, and works best with values of either 90° or 180°.
  • Snap Increment. The angle to use for Snapped Rotation.
  • Smooth Rotation. Rotates UV islands randomly up to a maximum of this angle.
  • Offset U / Offset V. Applies a random offset per UV island in the specified axis up to a maximum of this value.
  • Uniform Scale. Whether or not to use uniform scale. When on Scale U will be used.
  • Scale U / Scale V. Applies a random scale in the specified axis. The value will be added/subtracted to a default scale of 1. When Uniform Scale is on only Scale U will be used.

Copy Map

transform

Copy all UVs from one map to another.

  • Copy Map. UV Map to copy from.
  • To. UV Map to copy to. Enter the name of the map you wish to copy to. This will overwrite any existing UVs.
