Install

normalMagic is installed as an asset library in Blender. There is an optional add-on included with the Pro version which makes it easier and faster to set up certain modifiers.

Timestamped install video:

Asset Library

TLDR

Download the .zip, extract to a folder, add the folder as an asset library.

For more detailed instructions see below.

For more information on asset libraries you can check Blender's Official Documentation

First Time Install

  1. Download latest .zip file for the closest Blender version (normalMagic 4.5 v1.0.blend).
  2. Unzip/extract to a folder in your desired location.
  3. Open Blender and go to Edit/Preferences/File Paths/Asset Libraries.

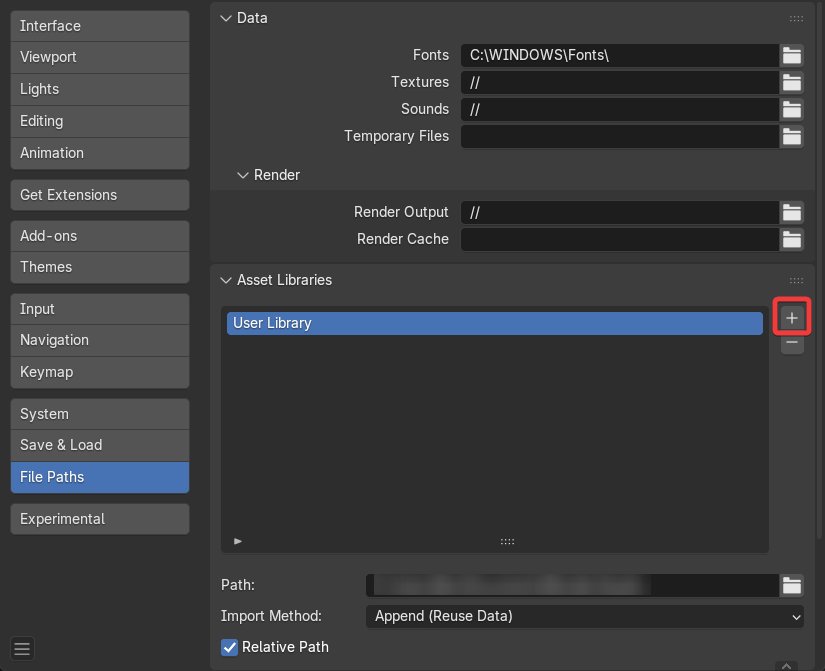

  4. Click + Add Asset Library. install_1

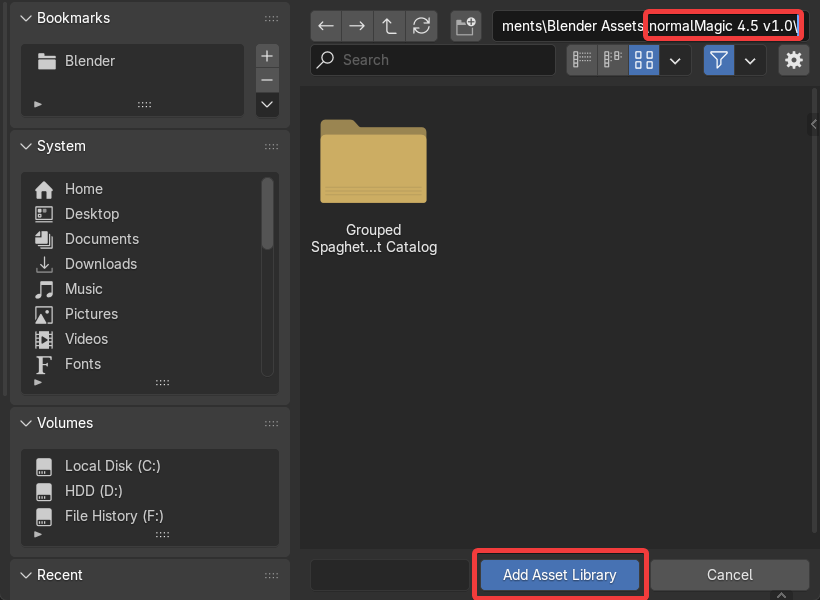

  5. Navigate to the unzipped folder and press Add Asset Library. install_2
  6. You should now see "normalMagic" in your asset libraries.

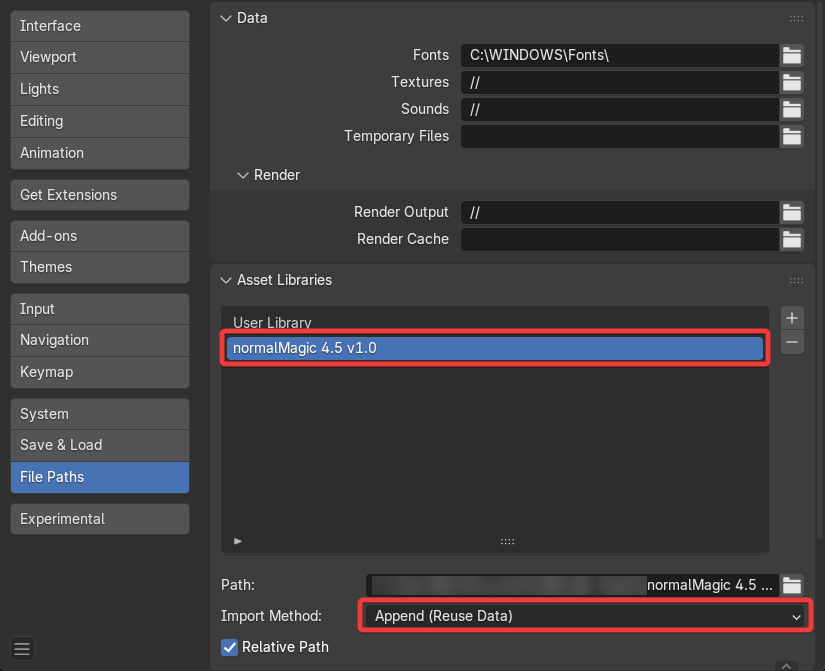

    Optional: Here you can choose how the data is imported by default. Setting this to 'Link' will reduce file sizes and make it easier to update versions. See the Official Documentation for more information. install_3

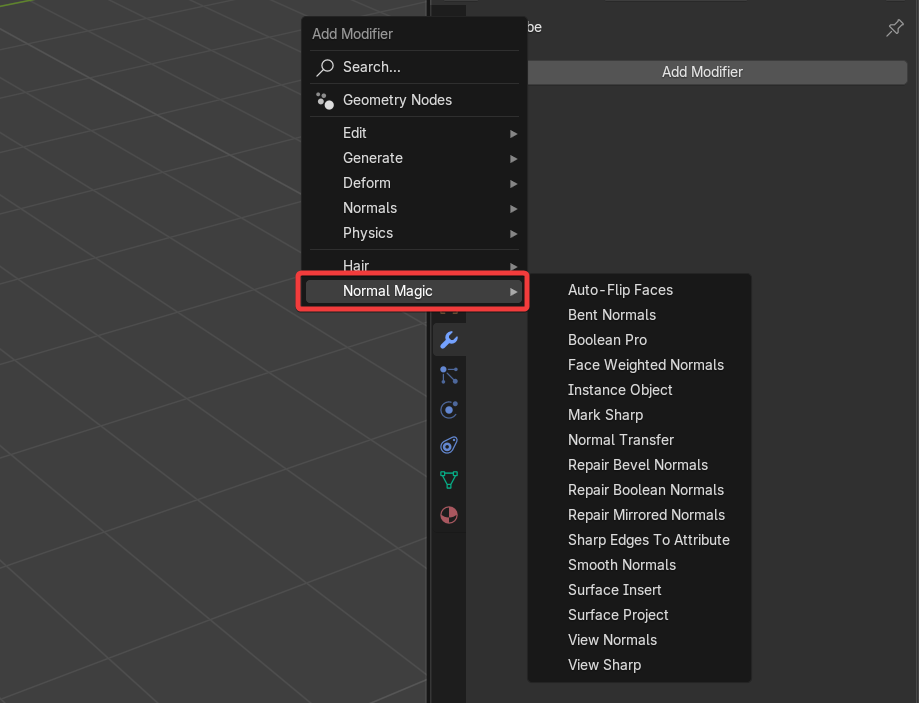

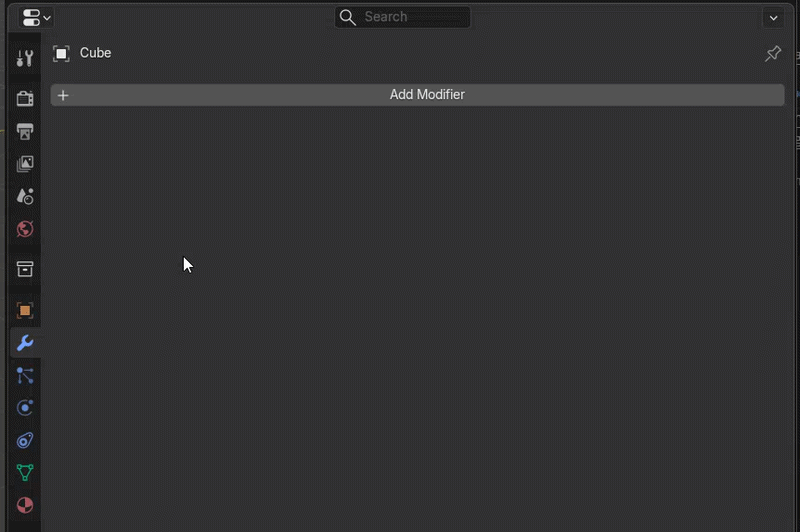

normalMagic should now be installed. Modifiers will now show up under the Add Modifier menu. install_check

Update Version

To update to a newer version of normalMagic:

  1. Remove existing asset library under Edit/Preferences/File Paths/Asset Libraries.
  2. Repeat install instructions to add new version.

Update Existing Modifiers

Linked Library

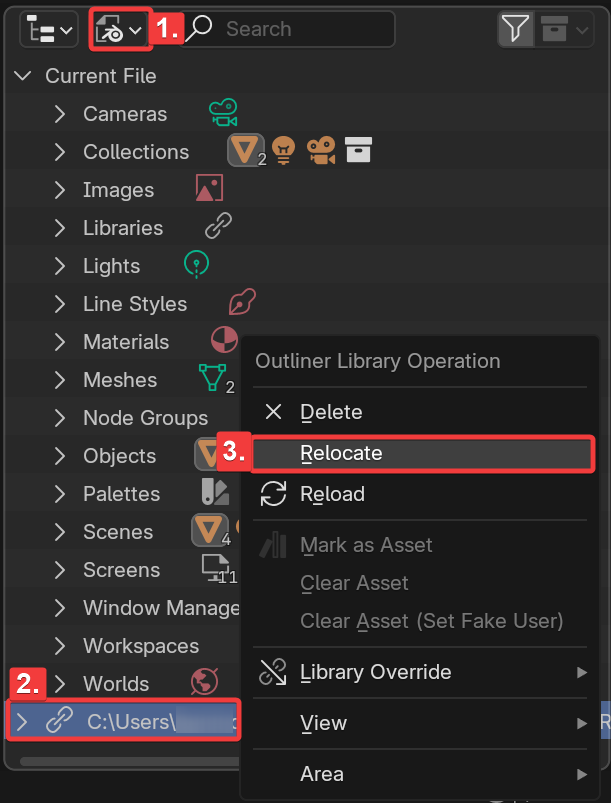

Update modifiers in existing scenes if library is set to "Link":

  1. Go to the outliner and change the view to "Blend File".
  2. Locate the normalMagic file.
  3. Right Click/Relocate.
  4. Select .blend file in the current asset library path.

Relocate Library

Appended Library

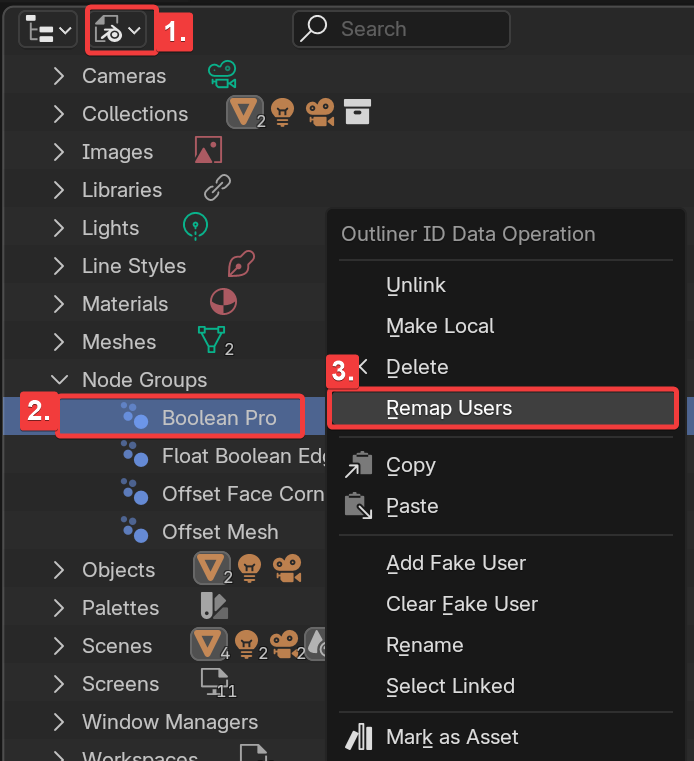

Update modifiers in existing scenes if library is set to "Append":

  1. Add new version of modifier somewhere in your scene.
  2. Go to the outliner and change the view to "Blend File".
  3. Find the modifier under "Node Groups".
  4. Right Click/Remap Users.
  5. Select the newer version (most likely called ".001").

Remap Modifiers

Add-on

Pro version

The normalMagic add-on is available to the Pro tier only.

Add-on Documentation

To install/update the add-on simply:

  1. Download the latest "addon" .zip file.

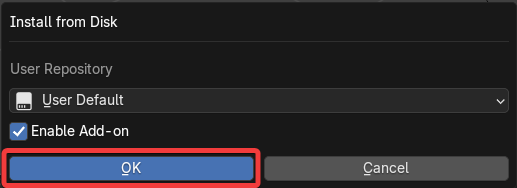

  2. Drag the .zip file into Blender and press OK. install_addon

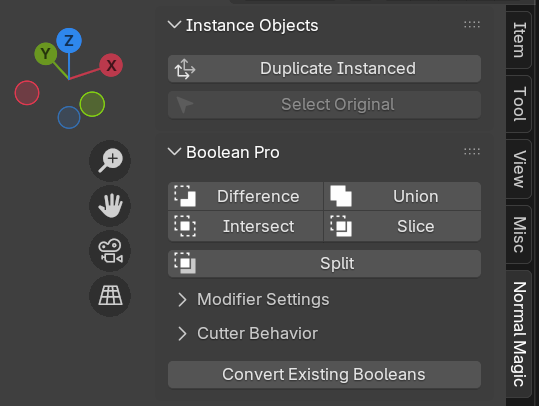

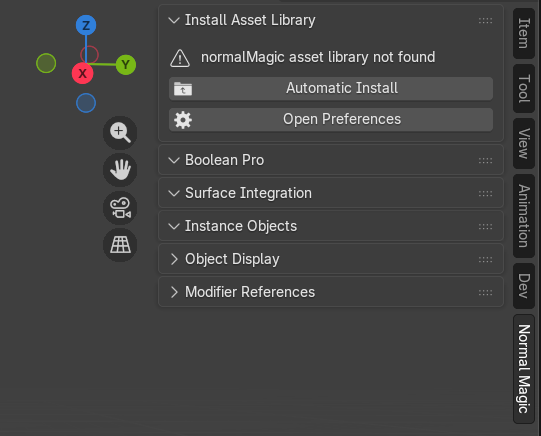

You should now see a "Normal Magic" tab in the sidebar of the 3D viewport.

addon panel
